| SPECIFICATIONS |
| POWER |

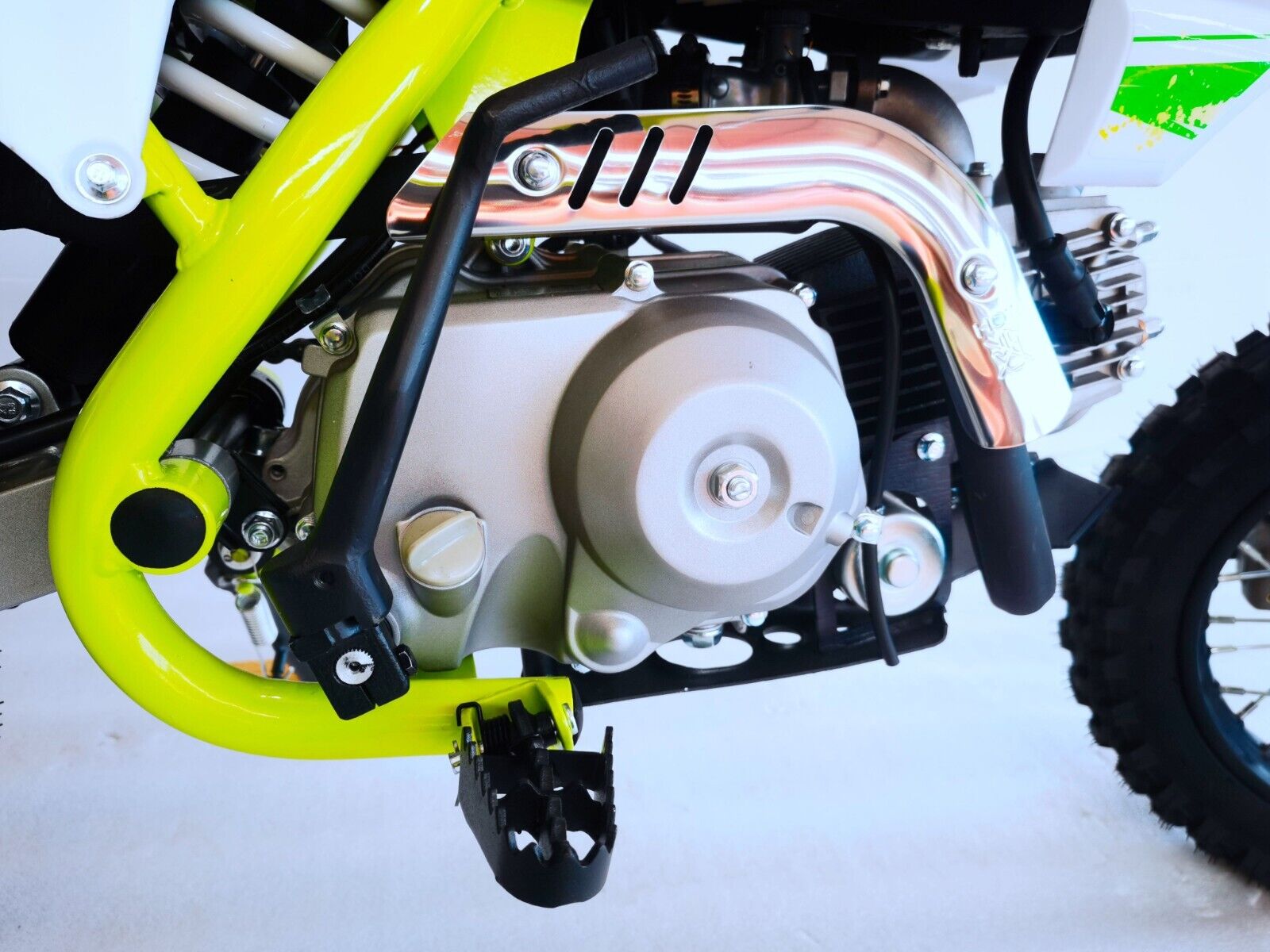

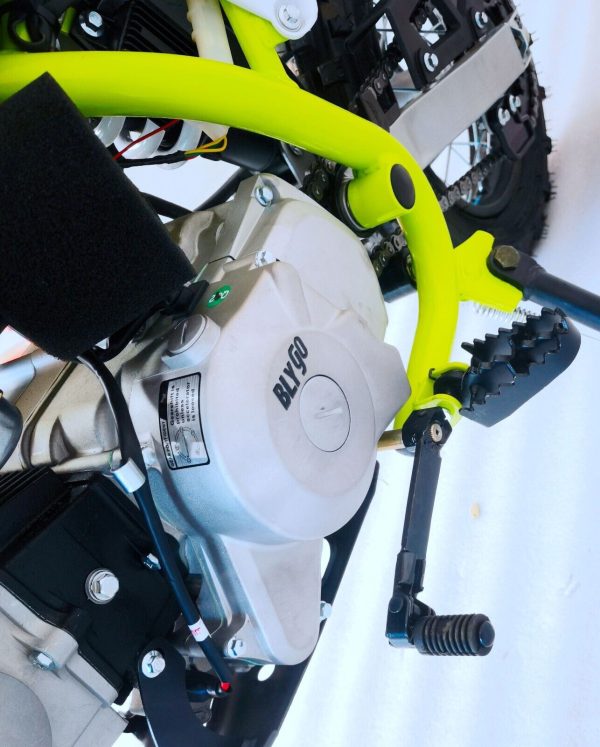

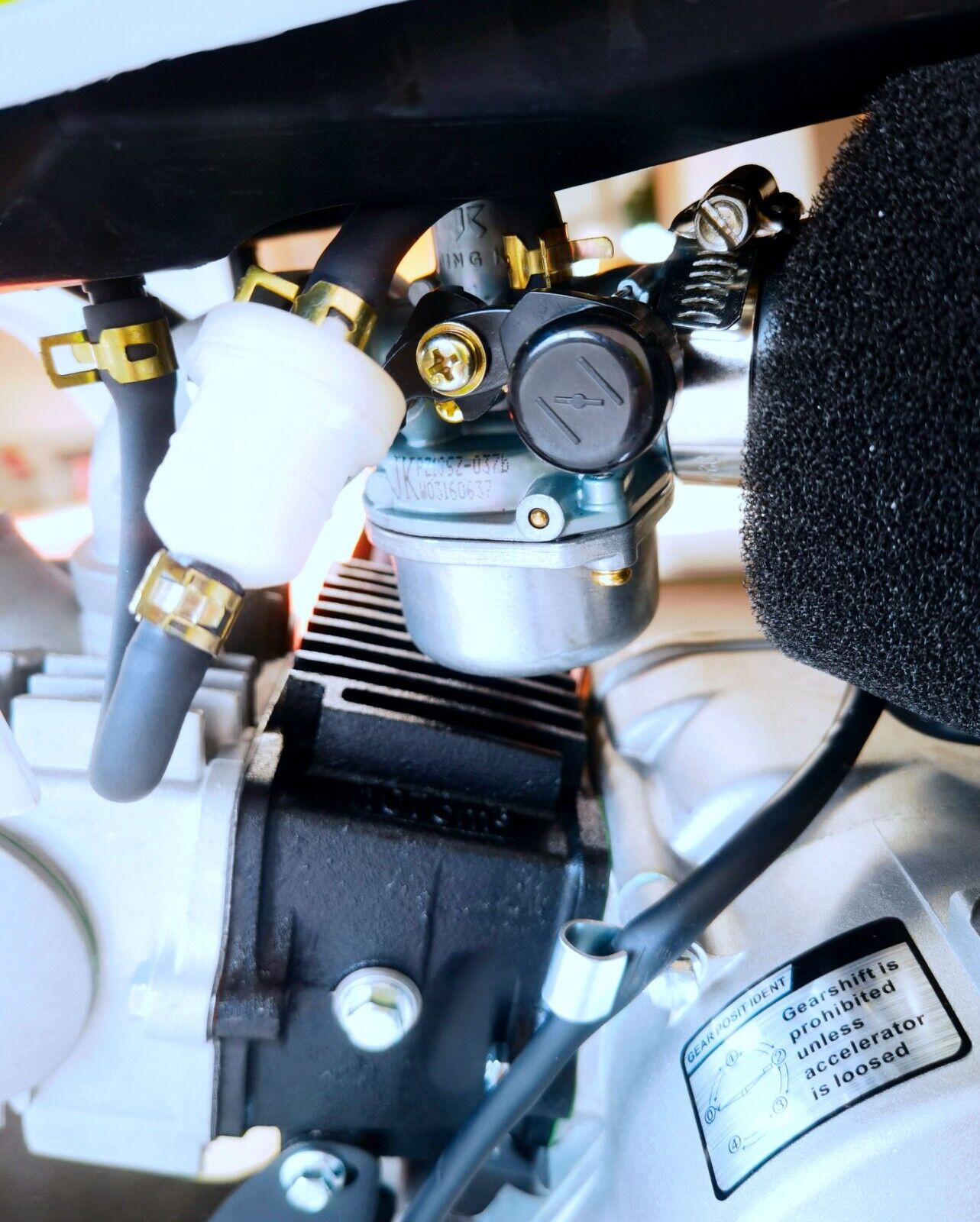

| Engine Type |
110CC, Single Cylinder, 4-Stroke, Air Cooled |
| Displacement |
107 ml |
| Bore x Stroke |
Ф52.4×49.5mm |
| Max Power |
5.0/8000±500 kw/r/min |
| Max Torque |
7.5/5500±500 N.m/r/min |
| Compression Ratio |
9.0:1 |
| Shift Type |
Semi-Auto Clutch, N-1-2-3-4 |
| Start Type |
Electric & Kick Start |
| Ignition |
CDI |
| Drive Train |

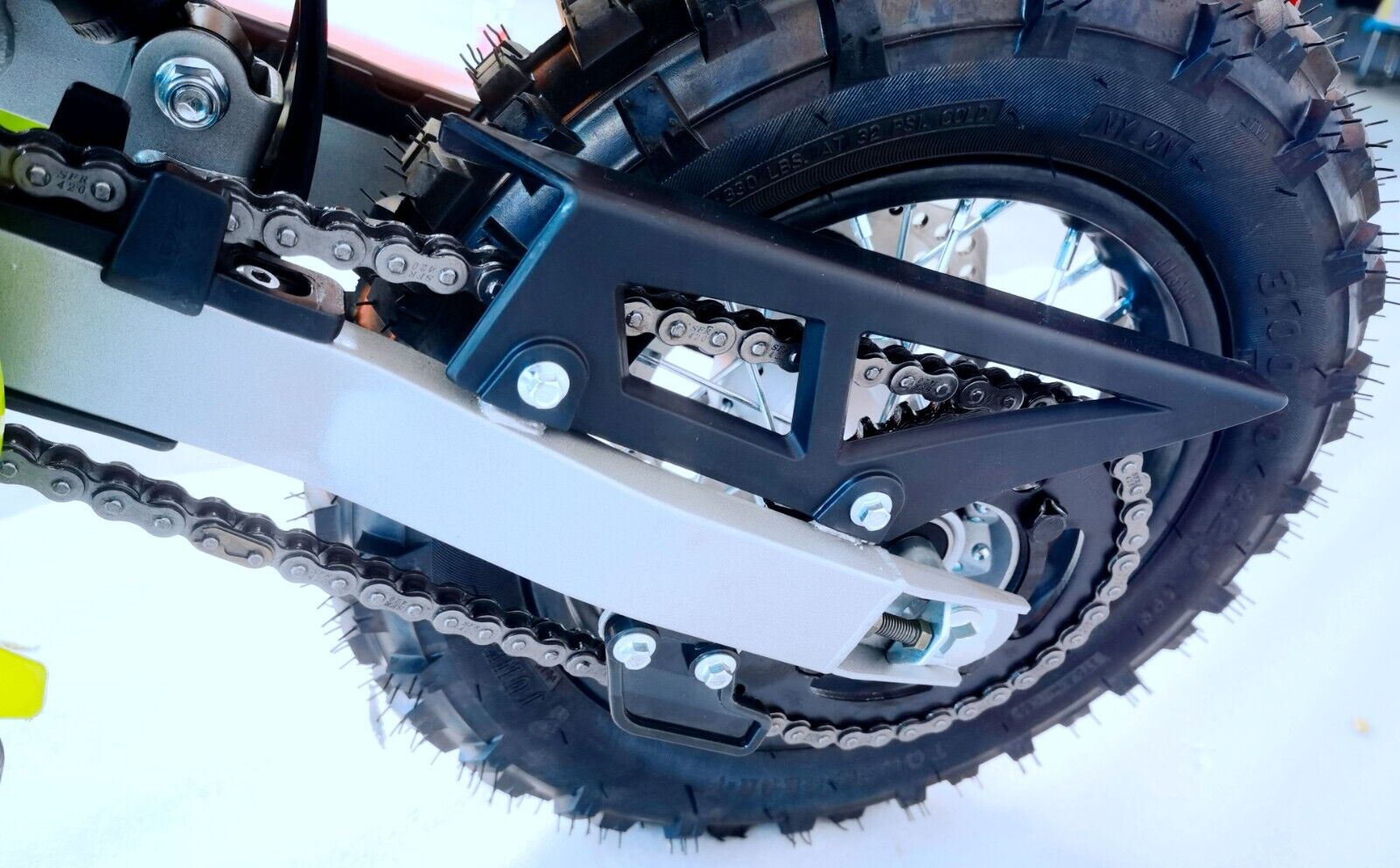

#420 Chain, FT: 14T/RR: 39T Sprocket |
| PERFORMANCE |
| Front Fork |
Φ39*Φ42-590mm Inverted Hydraulic Forks, 100mm Travel |
| Rear Shock |
12*270mm None-Adjustable Shock, 50mm Travel |
| Front Wheel |
Steel Rim, FT: 1.40 x 12 |
| Rear Wheel |
Steel Rim, RR: 1.60x 10 |
| Front Tires |
2.75-12 |
| Rear Tires |
3.00-10 |

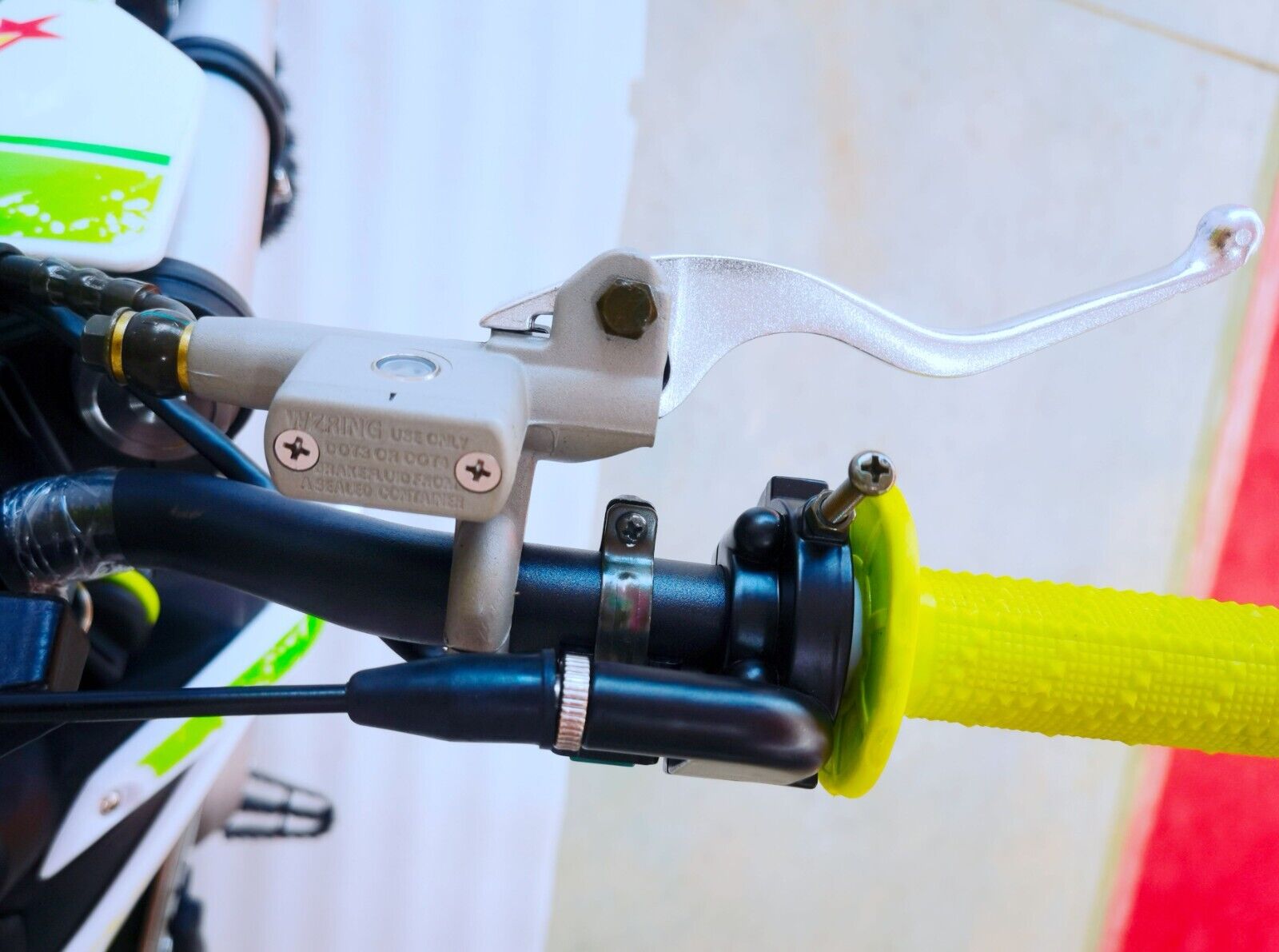

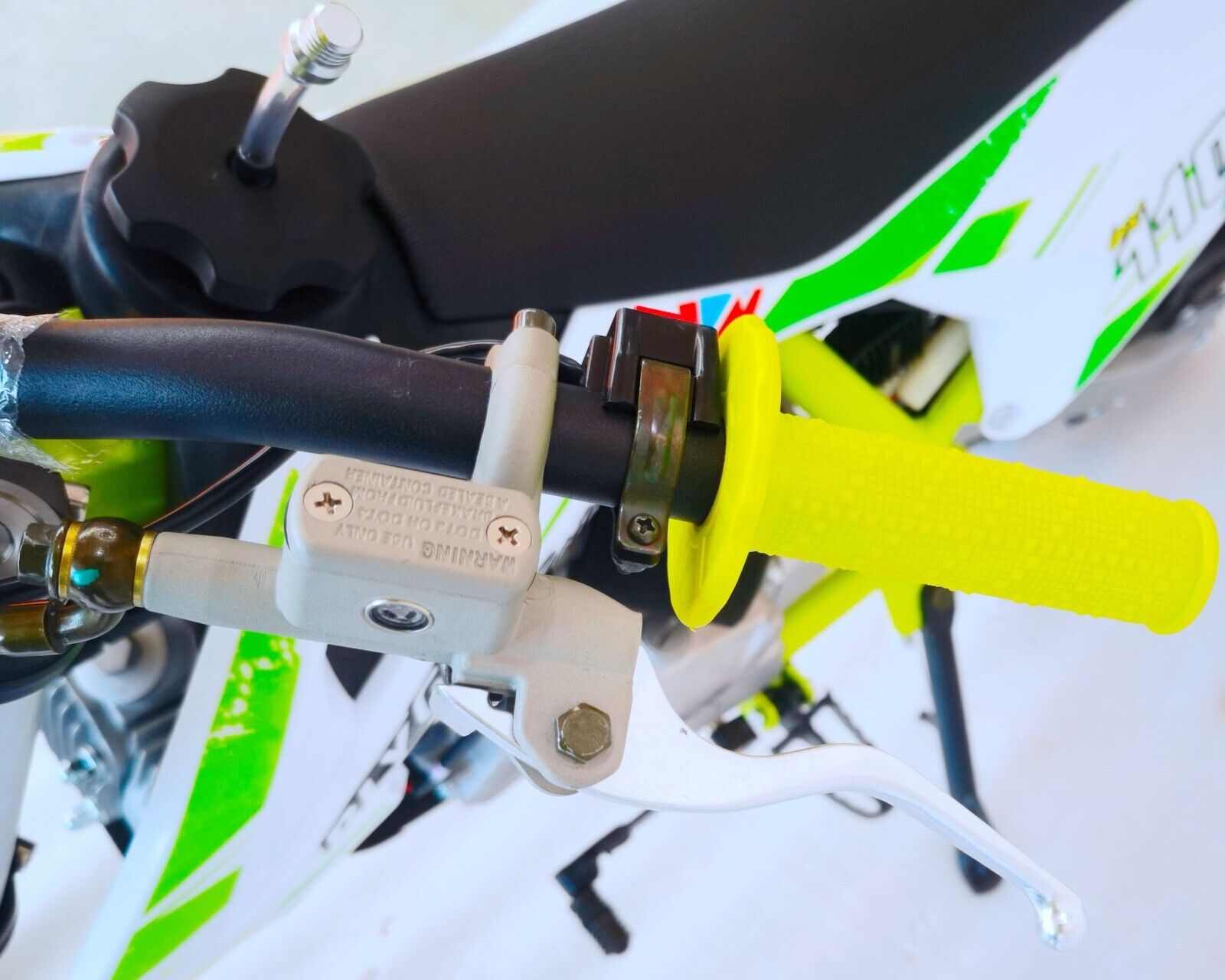

| Front Brake |
Single Piston Caliper, 190mm Disc |

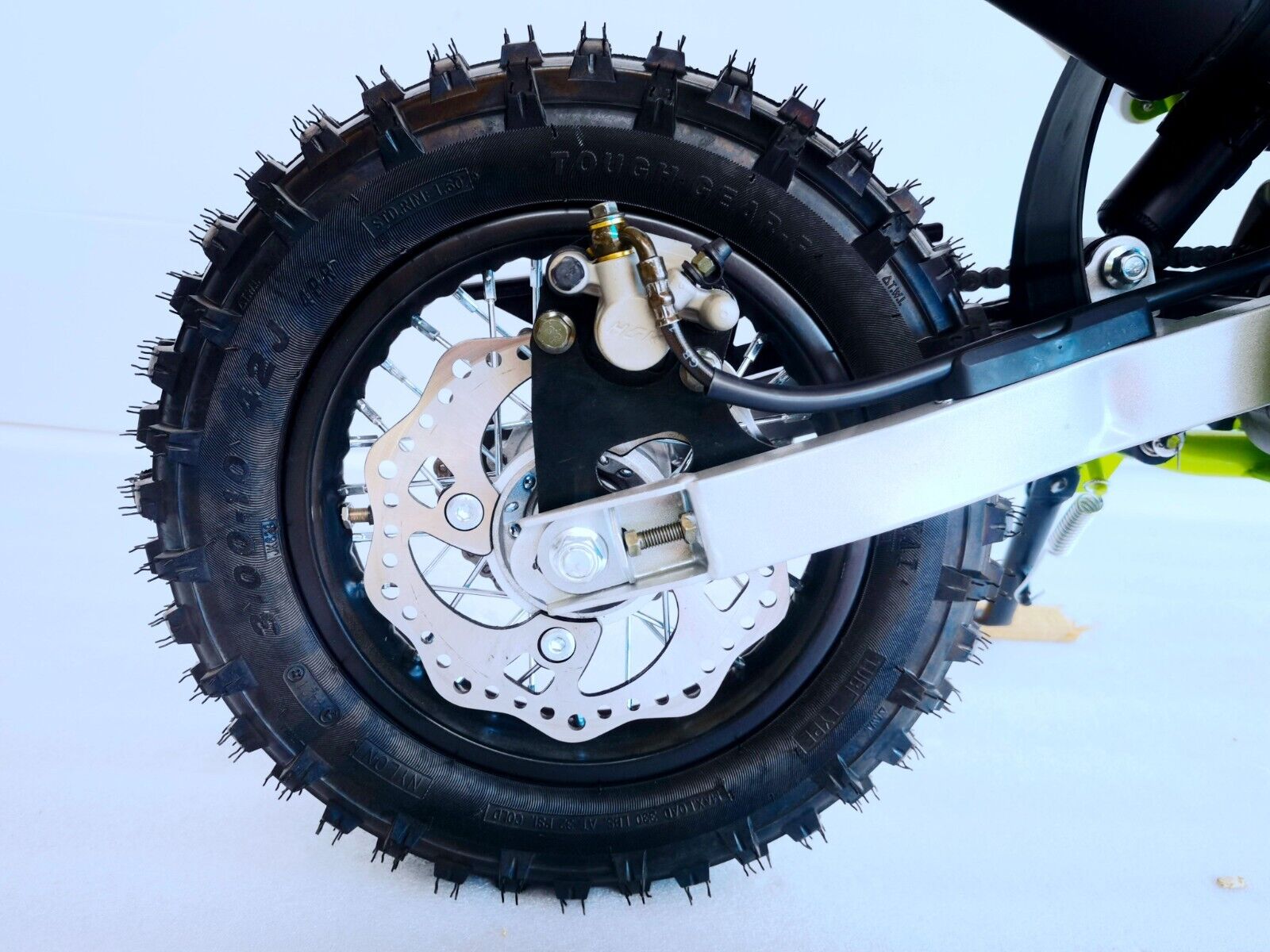

| Rear Brake |
Single Piston Caliper, 190mm Disc |

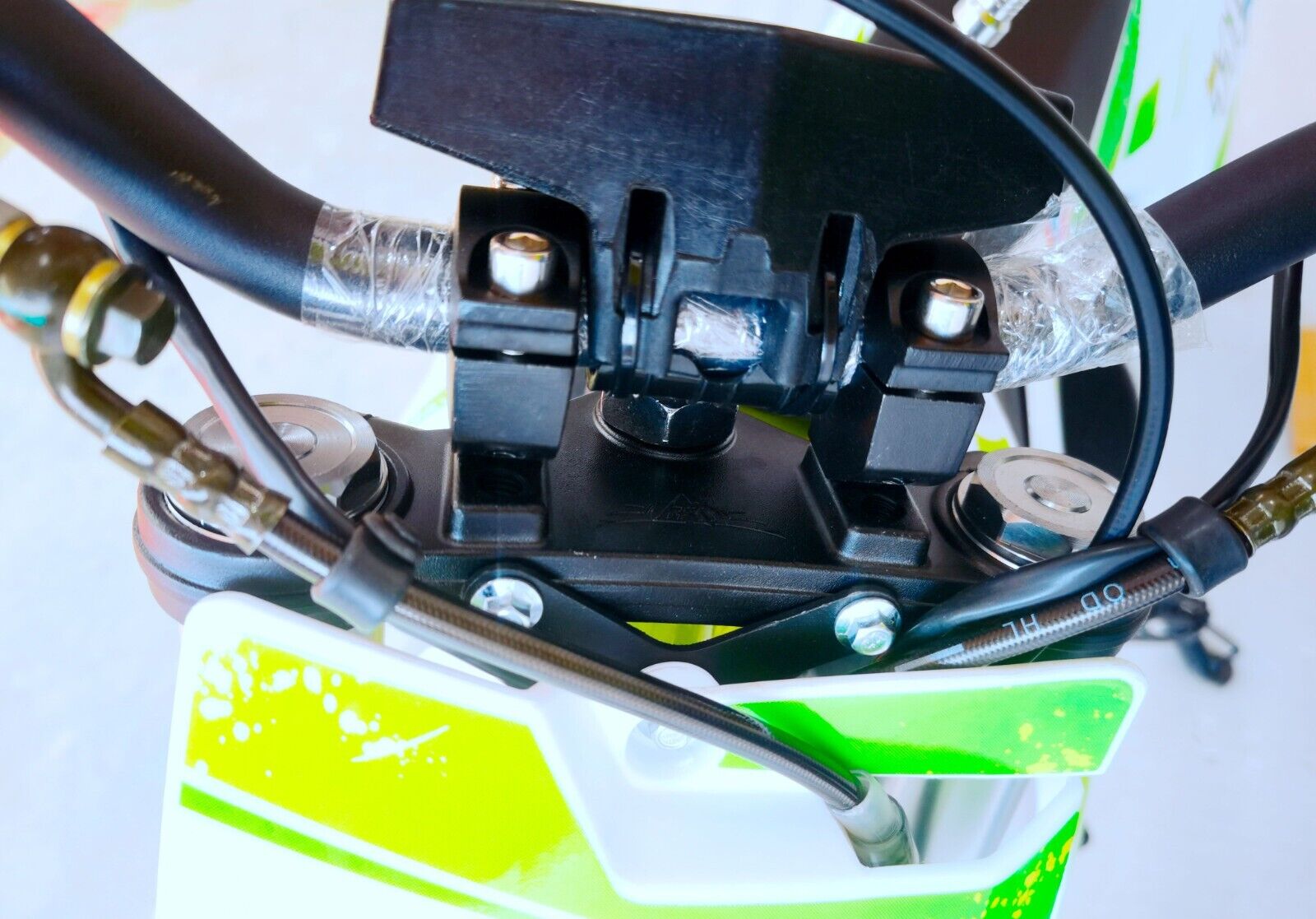

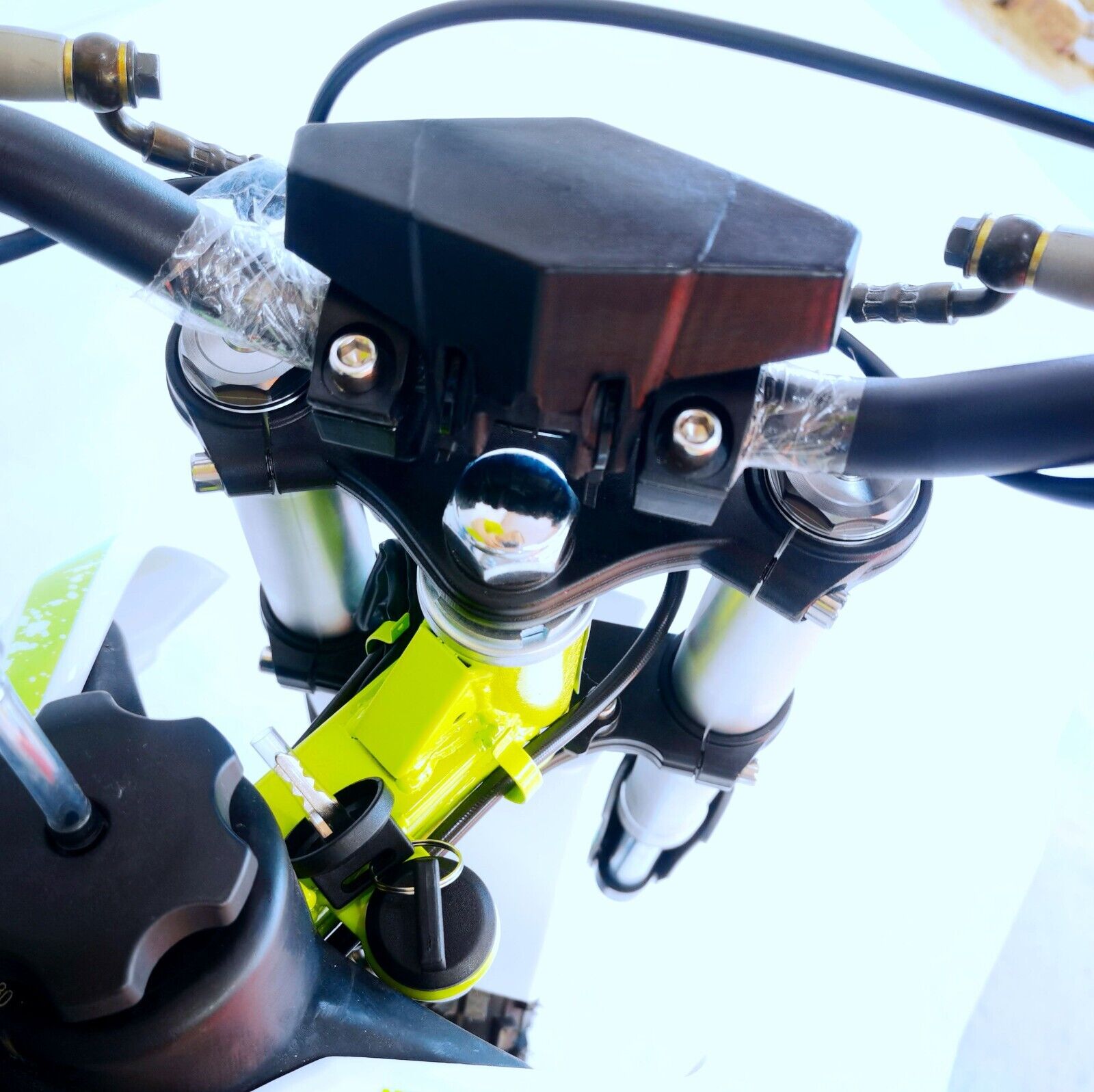

| Triple Clamp |
Die-casting aluminium |
| DETAILS |
| Frame |
Cradle Type Steel Tube Frame |
| Swing-Arm |
Tube High Strength Steel Swingarm |
| Handle Bar |
Steel ï¿ 22*620mm |
| Overall Size |
1520*650*840mm |
| Packing Size |
1255x335x615mm |
| Wheel Base |
1015 mm |
| Seat Height |
615mm |
| Ground Clearance |
220mm |
| Fuel Capacity |
2.2L / 0.58 Gal. |
| N.W |
51KG |
| G.W |
58KG |
