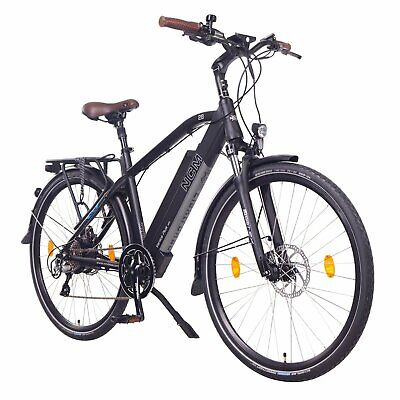

NCM Venice Trekking E-Bike, City-Bike, 250W, 48V 13Ah 624Wh Battery NCM

Inspired by the Romance of The great Italian City, The NCM Venice is both stylish and very practical. Perfect for running around the city, with a useful rack to the rear for extra storage. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat for improved comfort.

1. Ergonomic bicycle Grips
2. Comfortable sitting posture
3. All important controls are easily accessible
4. Supplied with 48V to deliver a high-output power
5. over 624Wh capacity for a longer distance
6. reach up to 120 km (depending on the conditions)
7. easily removable battery so you can charge it anywhere
8. A built-in USB port with 5V to charge mobile phones

In The Box

1. 1 x Venice E-bike
2. 1 x DC483DE 48v charger
3. 1 x tool kit

Das kit 250W Motor

Das Kit L7 Display

48V battery with USB

Schwalbe Tyres

Specifications

	NCM Venice	NCM Venice +
Motor	Das-Kit X15 motor, 48V 250W, max speed 25 km/h	Das-Kit X15 motor, 48V 250W, max speed 25 km/h
Battery	DEHAWK i5-4813H 624Wh Panasonic 48v 13Ah	DEHAWK i5-4816P 768Wh Panasonic 48v 16Ah
Display	Das-Kit L7, LCD Display	Das-Kit C7, LCD Display
Charger	SANS 48V 3A	SANS 48V 3A
Frame	Alu. 6061, 480mm	Alu. 6061, 480mm
Forks	Suntour NEX 28 63mm	Suntour NEX 28 63mm
Braking System	Tektro Mechanical Disc	Tektro Hydraulic Disc
Gear Selector	Shimano Altus, 7 speed	Shimano Acere, 8 speed
Front Derailleur	N/A	N/A
Rear derailleur	Shimano Altus, 7 speed	ShimanoAcere, 8 speed
Saddle	Selle Royal, Freeway, Brown	Selle Royal, Freeway, Brown
Tyre	Schwalbe Marathon, 28×1.5	Schwalbe Marathon, 28×1.5
Handle Grips	Velo, Brown	Velo, Brown
Pedal	Wellgo, B087	Wellgo, B087
Range	Upto 120 km	Upto 150 km
Weight	27 kg	27 kg

Sizing Chart

cm   A B C D E F
Stand Over Height Wheel Base Frame Size Min / Max Seat Height Reach Overall Length
Venice 28	175-198	86-89	108	48	94/105	58	183
